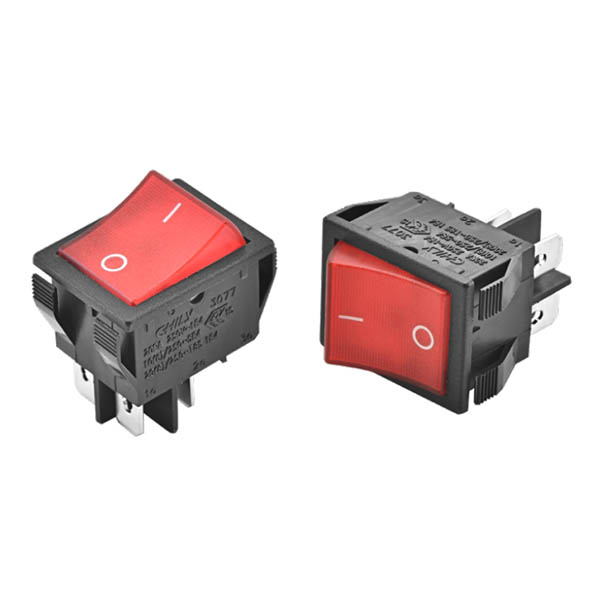

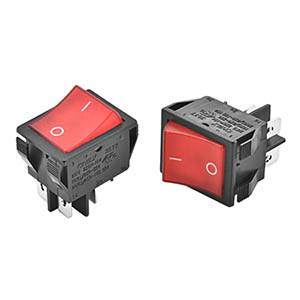

3077 ROCKER SWITCH

SPECIFICATION:

RATING :

20(8)A 250V~T85 (UL,CUL,ENEC)

3/4HP 125/250VAC (UL,CUL)

10(6)A 250V~ 5E4 (UL,CUL,ENEC)

INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS

WITHSTAND VOLTAGE : AC 1500V FOR 1 Min

AMBIENT TEMPERATURE : 0℃ TO 55℃

ELECTRICAL LIFE : 10000 CYCLES
