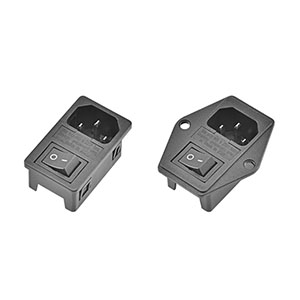

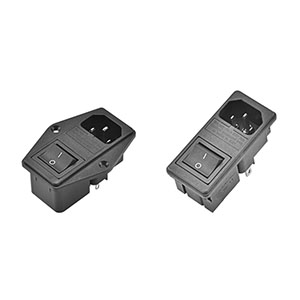

POWER ENTRY MODULE
-
三合一開關保險絲插座
3528 SERIES(SNAP) SOCKET + FUSE HOLDER + SWITCH
SPECIFICATION:
IEC60320 / C14 / C18 + FUSE HOLDER + ROCKER SWITCH
SOCKET RATING :
15A 125VAC (UL,CUL)
10A 250VAC (ENEC,CCC)
SWITCH RATING : Pls refer to the rocker switch 3026, 3022, 3010 series
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
FUSE HOLDER : MAX 10A / 2.5W 250VAC (ENEC)
-
插座帶保險絲座

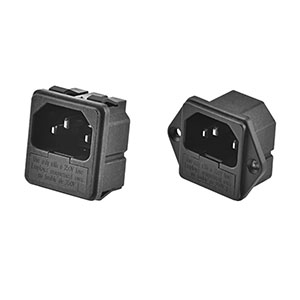

3528 SERIES(SCREW) SOCKET + FUSE HOLDER
SPECIFICATION:
IEC60320 / C14 / C18 INLET + FUSE HOLDER
RATING :
15A 125VAC (UL,CUL)
10A 250VAC (ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
FUSE HOLDER : MAX 10A / 2.5W 250VAC (ENEC)
-
插座帶保險絲座

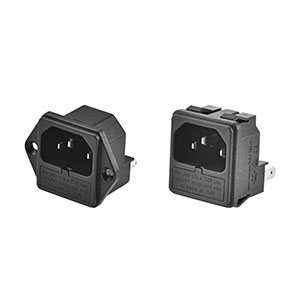

3528 SERIES(SNAP) SOCKET + FUSE HOLDER
SPECIFICATION:
IEC60320 / C14 / C18 INLET + FUSE HOLDER
RATING :
15A 125VAC (UL,CUL)
10A 250VAC (ENEC,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
FUSE HOLDER : MAX 10A / 2.5W 250VAC (ENEC)
-
插座帶開關

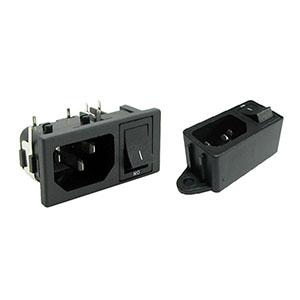

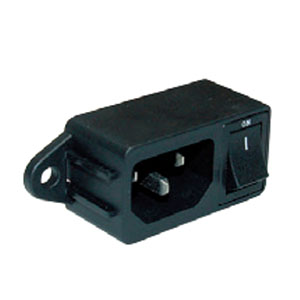

3544 C14 INLET + SWITCH
SPECIFICATION:
IEC60320 / C14 / C18 + SWITCH
SOCKET RATING :
15A 125VAC (UL,CUL)
10A 250VAC (ENEC,CCC)
SWITCH RATING : Pls refer to the rocker switch 3024 or 3010 series
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
插座帶雙保險絲座
3545 SERIES(SCREW) SOCKET + DOUBLE FUSE HOLDER
SPECIFICATION:
IEC60320 / C14 INLET + DOUBLE FUSE HOLDER
SOCKET RATING : 10A 250VAC (UL,CUL,VDE,CCC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
FUSE HOLDER RATING : MAX 10A / 2.5W 250VAC (ENEC)
-
三合一開關插座帶雙保險絲座
3545 SERIES(SCREW) SOCKET + DOUBLE FUSE HOLDER + SWITCH
SPECIFICATION:
IEC60320 / C14 INLET + DOUBLE FUSE HOLDER + SWITCH
SOCKET RATING :10A 250VAC (UL,CUL,VDE,CCC)
SWITCH RATING : Pls refer to the rocker switch 3050, 3052 series
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
FUSE HOLDER RATING : MAX 10A / 2.5W 250VAC (ENEC)
